TRIJICON - ACOG 223 BDC 4X32MM FIXED RIFLE SCOPE WITH RMR TYPE 2

ACOG 223 BDC 4X32MM FIXED RIFLE SCOPE WITH RMR TYPE 2


There's a reason the Trijicon ACOG® (Advanced Combat Optical Gunsight) is the official medium-distance engagement optic of the Marine Corps and U.S. Special Operations Forces.

And there’s a reason why more than one million ACOGs have been produced. Every feature of its innovative design was chosen for a single purpose: to provide increased hit potential in all lighting conditions. This is possible through a brilliantly illuminated reticle pattern, a compact design, and legendary durability that continues to lead the industry.

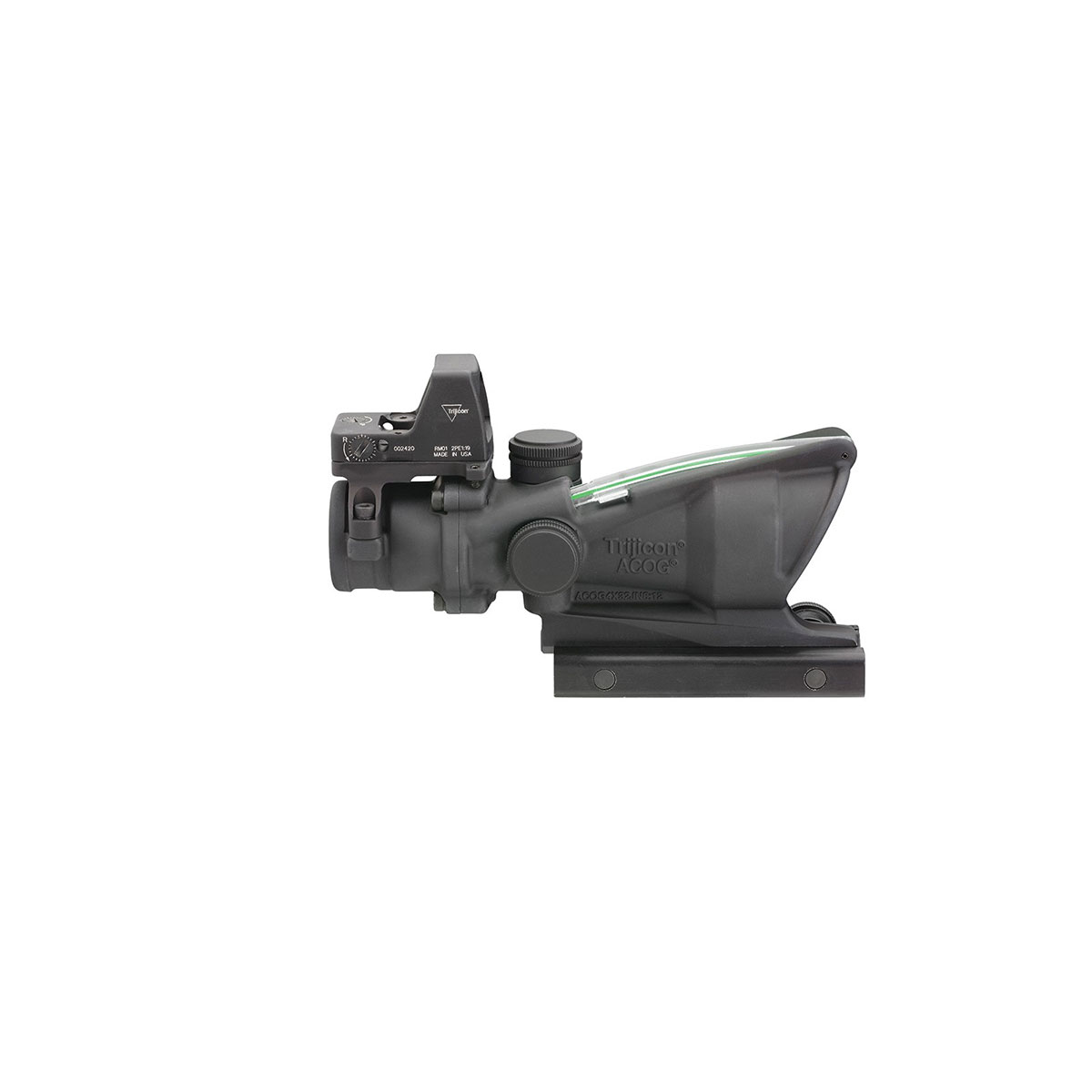

Adapted from the battlefields, US Forces have begun improving this proven Trijicon ACOG scope by adding a small red dot sight on top for close encounter missions. Trijicon has now created a similar model for the public, the TA31. The main Trijicon scope provides a dual-illuminated reticle using fiber optics and tritium for bright aiming point in any light condition. The ranging reticle allows for bullet drop compensation out to 800 meters without any manual adjustments. A Trijicon RMR Type 2 sits on top with a 3.25 MOA aiming dot.

FEATURES:

ALWAYS ON, ALWAYS READY

Most ACOG® models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.

TAKE CONTROL

Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.

RUGGED, RELIABLE HOUSING DESIGN

Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.

“BOTH EYES OPEN” DESIGN

“Both eyes open” shooting using Trijicon's Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.

OUTSTANDING CLARITY

The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.

EXACT TARGET DISTANCES & HOLDS

Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.

COMBAT PROVEN

No other magnified optic has been used more in combat than the ACOG.

SHOCK-RESISTANT

Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.

WATERPROOF

Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.

INCLUDED IN THE BOX:

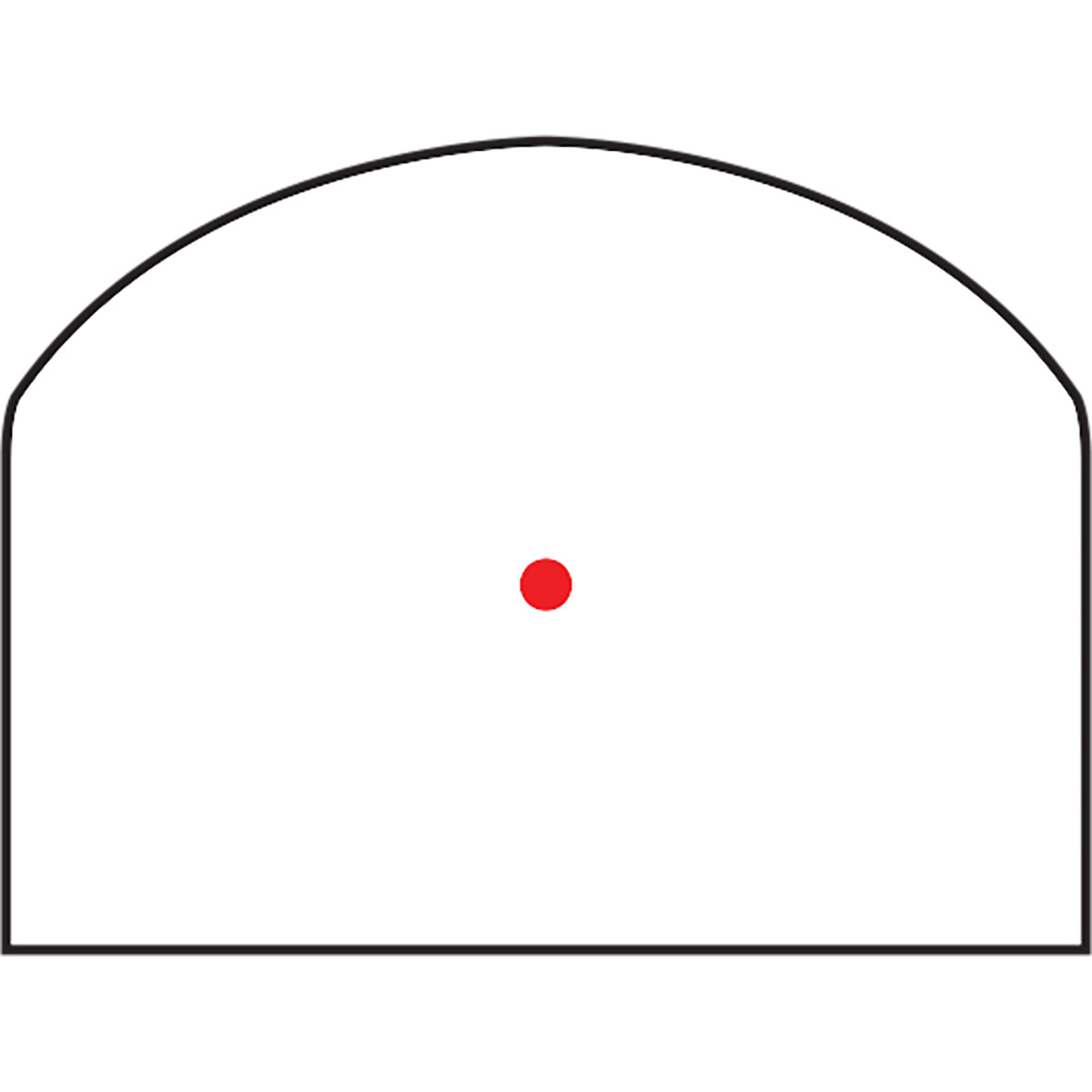

• 3.25 MOA Trijicon RMR Type 2
• Thumbscrew Flattop Adapter (TA51)
• LENSPEN (TA56)
• Lanyard Assembly for Adjuster Caps (TA71E)
• Trijicon Logo Sticker (PR15)
• ACOG BAC Manual
• Warranty Card

SPECIFICATIONS:

• Weight – 15.1 oz. (428.08g)
• Magnification - 4x
• Objective Size - 32mm

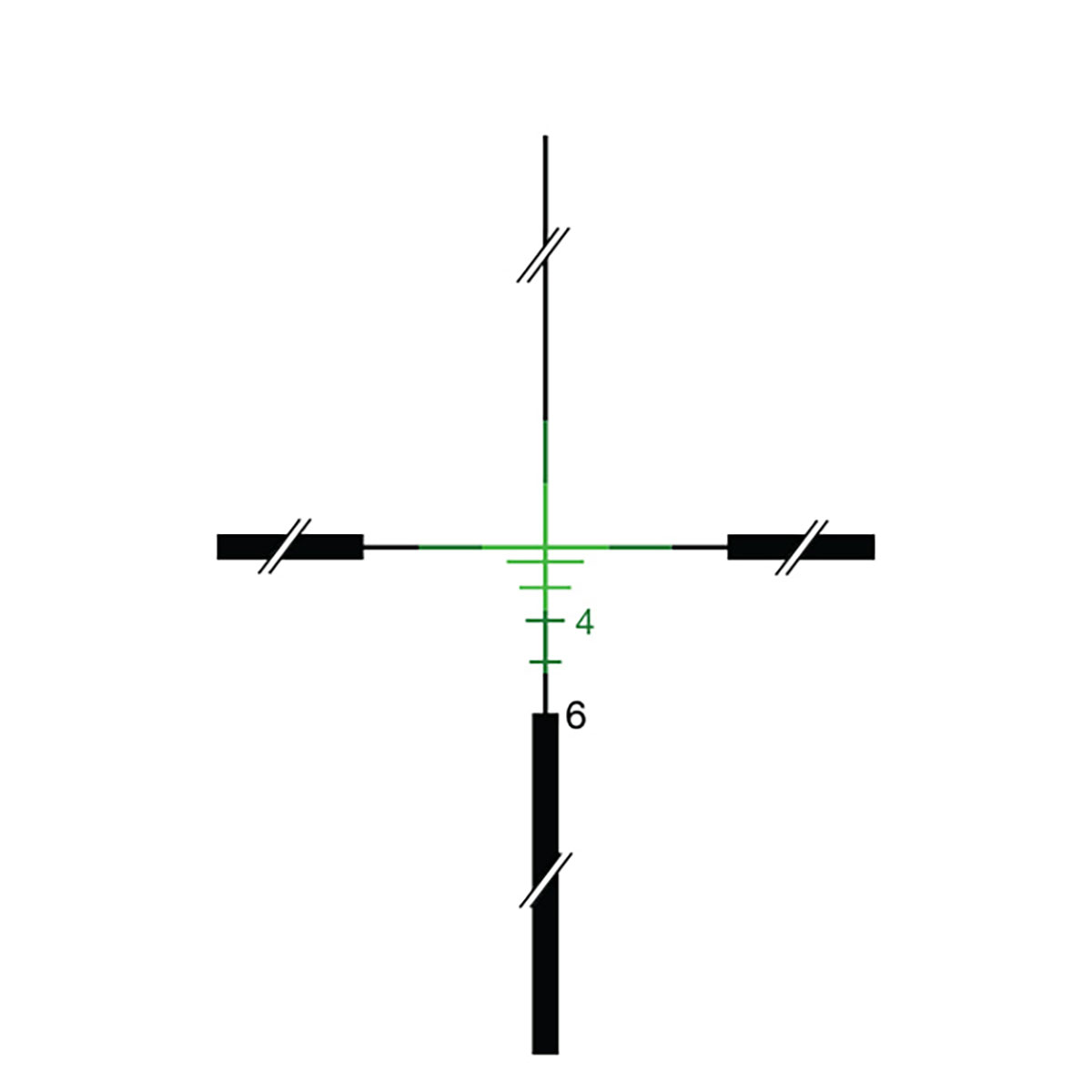

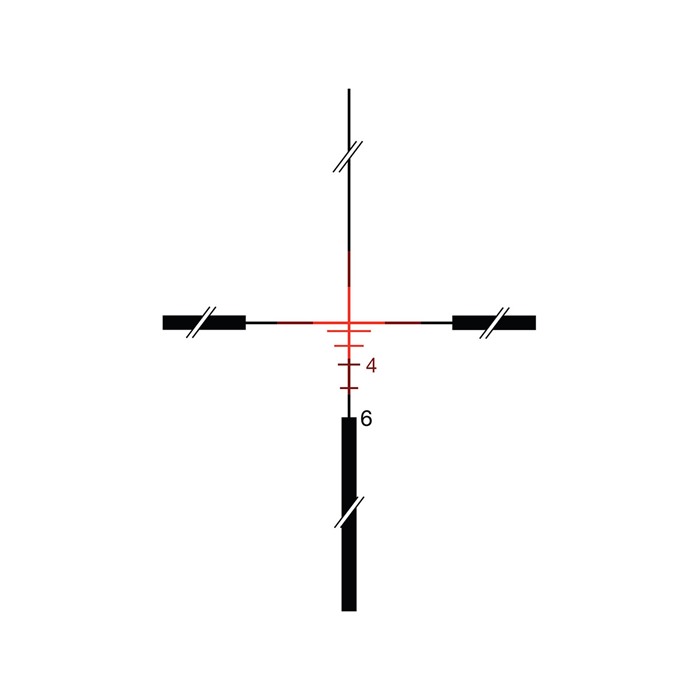

• Reticle Pattern – Chevron, Crosshair
• Day Reticle Color – Red or Green
• Night Reticle Color – Red or Green
• Bullet Drop Compensating (BDC) – Yes
• Bindon Aiming Concept™ (BAC) - Yes
• Caliber – .223/5.56
• Illumination Source – Fiber Optic & Tritium
• Power Source – Fiber Optic & Tritium
• Eye Relief - 1.5 in. (38.1mm)
• Exit Pupil - 0.32 in. (8.13mm)
• Field of View (degrees) - 7°
• Field of View (feet) - 36.8 ft. @ 100 yds. (12.27m @ 100m)
• Mount - Flattop Thumbscrew Mount (TA51)
• Housing Material - Forged Aluminum
• Finish - Matte Black
