HIGH-DEF ARMORY GALLERY
SKU: BRWN-0C7B2485
INSPECT ALL FACTORY VIEWS & ZOOM • 100% WIDESCREEN HIGH-RES
IN STOCK (ARMORY EAST HUB)
MADE IN USA / MIL-SPEC GRADE
ITAR Regulated
SWAMPFOX OPTICS - BLADE 1X25MM PRISM SIGHT
Quick Factory Specs at a Glance
Cartridge
5.56x45 NATO
Color
Black
Item Weight (lbs)
7.000
Action Type
Semi-Auto
Cartridge Capacity
30
ARMORY DIRECT PRICE:
$205.00
Ready to Ship
100% In-House Ballistic QC • Lifetime Replacement Warranty
1. SELECT ARMORY CONFIGURATION:
2. SELECT RECEIVER / SYSTEM FINISH:
Delivery & FFL Transfer Check Required
Check state & local armory laws before ordering. Authorized FFL dealer locator available during secure checkout.
Specifications
Cartridge:
5.56x45 NATO
Color:
Black
Item Weight (lbs):
7.000
Action Type:
Semi-Auto
Cartridge Capacity:
30
Front Sight Type:
A2
Material:
Aluminum
Barrel Finish:
Blued
Finish:
Matte
Magazine Quantity:
1
Mount Type:
N/A
Barrel Length:
16.10
Magazine Type:
Detachable
Make Model Fit:
SWAMPFOX OPTICS.BRWN
Magazine Capacity:
30
Quantity:
1
Rear Sight Type:
Adjustable
Magazine Included:
Yes
Stock Material:
Polymer
Stock Style:
Adjustable
Muzzle:
Muzzle Brake
Country:
USA
Magazine:
Included
Restriction
FFL Required:
Yes
Age restriction:
18 and above
Oversea shipping:
No
Prop 65 restriction:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
MADE IN USA / MIL-SPEC GRADE
FACTORY TECHNICAL BREAKDOWN
What is the SWAMPFOX OPTICS - BLADE 1X25MM PRISM SIGHT?

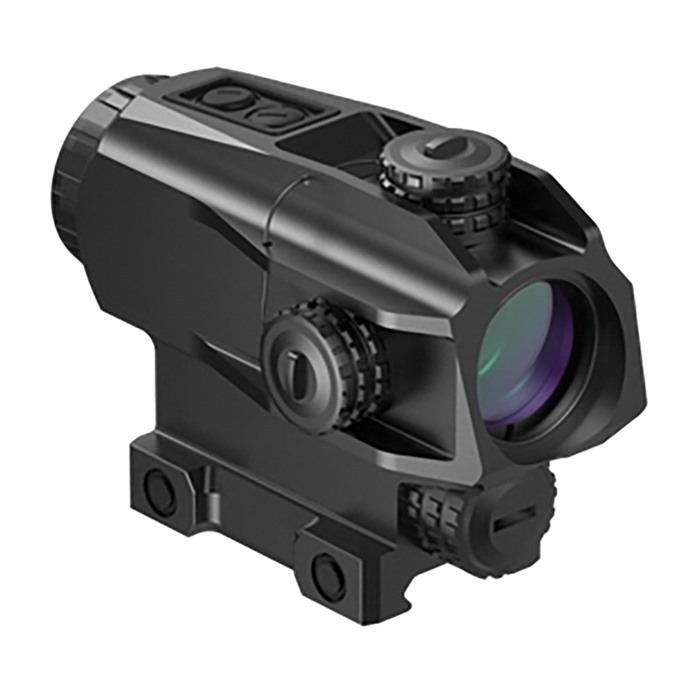

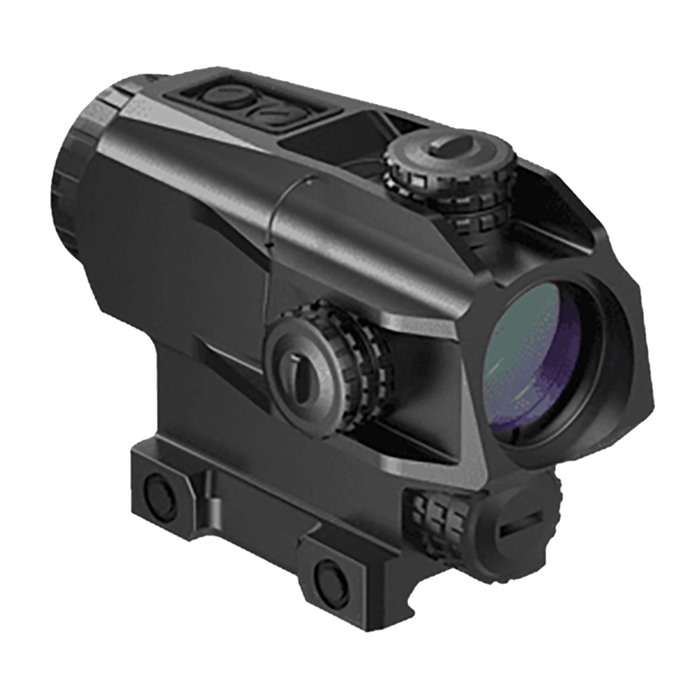

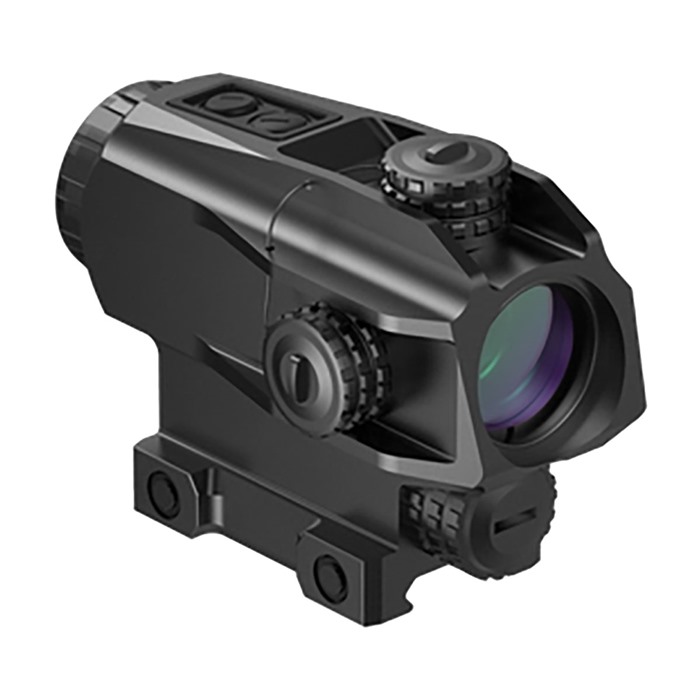

SWAMPFOX OPTICS - BLADE 1X25MM PRISM SIGHT
BLADE 1X25MM PRISM SIGHT
Blade by Swampfox is a 1x25mm prism optimized for CQB engagements. It features a Bullet Rise Compensating etched reticle that compensates for optic height over bore, making it ideal for 5, 10, and 15 yards on a 5.56 AR-15 style platform. Shake N’ Wake feature auto on/off will help conserve battery life, and the etched reticle provides a clear sight picture, benefiting shooters with astigmatism. Blade's design optimizes reliability and performance, making it a reliable and effective aiming device for any shooter.
FEATURES:
BULLET RISE COMPENSATION
As everyone knows, gravity has a downward effect on moving projectiles, the longer the distance, the greater the effect. When it comes to standard zeros, like the 50 to 200, short-range engagements become more difficult due to height over bore. Blade's BRC offers a solution with dedicated holds for 5, 10, and 15 yards when used on an AR-15 and similar platforms.
ILLUMINATION AND SHAKE N’ WAKE
Blade is available in red, green, or amber illumination variants. The two lowest settings offer NV device compatibility, while settings 3 through 8 offer indoor brightness settings, with 9 and 10 being daylight bright for direct overhead light environments.
Blade offers a true grab-and-go level of readiness with Shake N’ Wake. After 225 seconds without motion, reticle illumination shuts off to preserve battery life, leaving the etched reticle to remain in black. Any movement at all will wake up the optic, returning it to the previous illumination setting.
In a worst-case scenario, the etched reticle will always remain black if the battery were to malfunction or fail.
SHOOT FAST, MOVE FAST
Unlike typical red dots, prisms have constraints on eye relief and the eye box. To counteract this problem, we added a 13.5mm exit pupil, providing a forgiving and tremendous view. Once mounted, you will be able to set the rear diopter, allowing for a both-eyes-open shooting experience.
BLADES CUTTING EDGE
Having an etched reticle gives every user some sort of advantage, whether it is users who suffer from common astigmatism or someone who just wants to be ready for the end of the world. Blade has something to offer for everyone. Blade's chemically etched reticle and rear diopter make for an ideal sight picture for almost anyone, providing a fast and clear aiming tool.
RIGHT OUT OF THE BOX
Blade's all-in-one integrated 1913 Picatinny mounting system provides increased structural integrity, eliminating confusion about mounting. It’s tough and rugged 6061-T6 aircraft grade aluminum housing can withstand harsh conditions, making Blade a reliable and effective tool for any shooter, even in extreme environments.
SPECIFICATIONS:
- Adjustment Click Value: 0.5 MOA
- Reticle Type: CQB Bullet Rise Compensation
- Magnification: 1x
- Lens Diameter: 25mm
- Illumination Positions: 10 total, 2 NV
- Brightness Adjustments: Up/Down Digital Press
- Shockproof G Forces: 800Gs
- Waterproof: 1 Meter/ IPX7
- Battery Type: CR123a (included)
- Max Battery Life: 3,000 hours
- Dimensions: 4.0”(length) * 2.44” (width) * 3.0” (height)
- Weight: 13.1 ounces
- Lens: Fully Multi Coated
- Specialty Coatings: Anti-fog, hydrophobic, anti-scratch
- Parallax: Parallax free @100 yards
- Eye Relief: 3.8"
- Exit Pupil: 13.5mm
- Mount Type: Picatinny T25 Star Mount Bolts: 35 inch-pounds torque.
- Chassis: 6061-T6 Aircraft grade aluminum
- Windage/Elevation Movement Range (MOA): +/- 45MOA/ Total 90MOA Range
See all of our AR15s and AR15 Parts here.
Every system is hand-fitted by master gunsmiths at our East Coast armory vault and undergoes a strict 4-stage optical shock and live-fire proofing test before dispatch to ensure sub-MOA reliability right out of the box.
Key Specifications & Features:
- Cartridge: 5.56x45 NATO
- Color: Black
- Item Weight (lbs): 7.000
- Action Type: Semi-Auto
- Cartridge Capacity: 30
In The Box / Package Contents:
- 1x SWAMPFOX OPTICS - BLADE 1X25MM PRISM SIGHT Complete System
- 1x Factory Protective Packaging & Operator Manual
ARMORY COMPARISON GRID
View All Alternatives >
Alternative products
$15.75
VIEW SPEC
$96.00
VIEW SPEC
IN STOCK
4.9

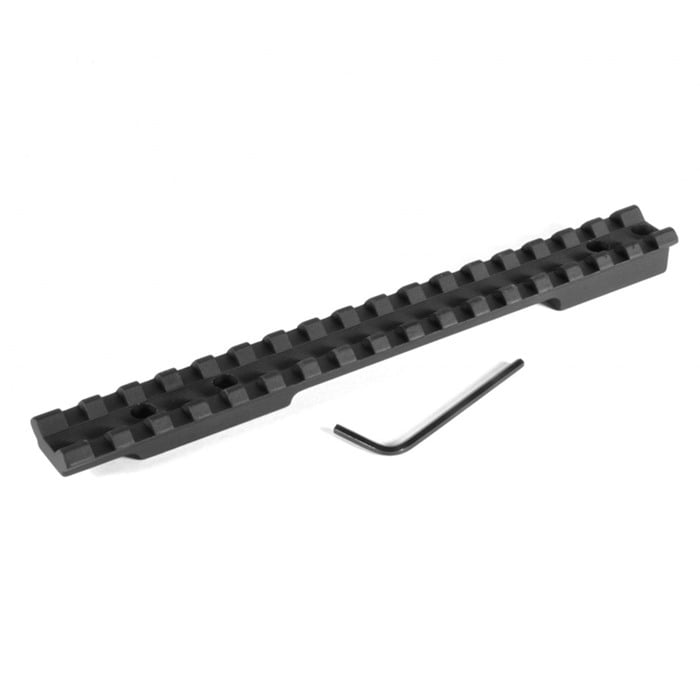

EGW - REMINGTON 700, 721, 725 LONG ACTION SCOPE BASES
EGW - REMINGTON 700, 721, 725 LONG ACTION SCOPE BASES
$35.99
VIEW SPEC
IN STOCK
4.9

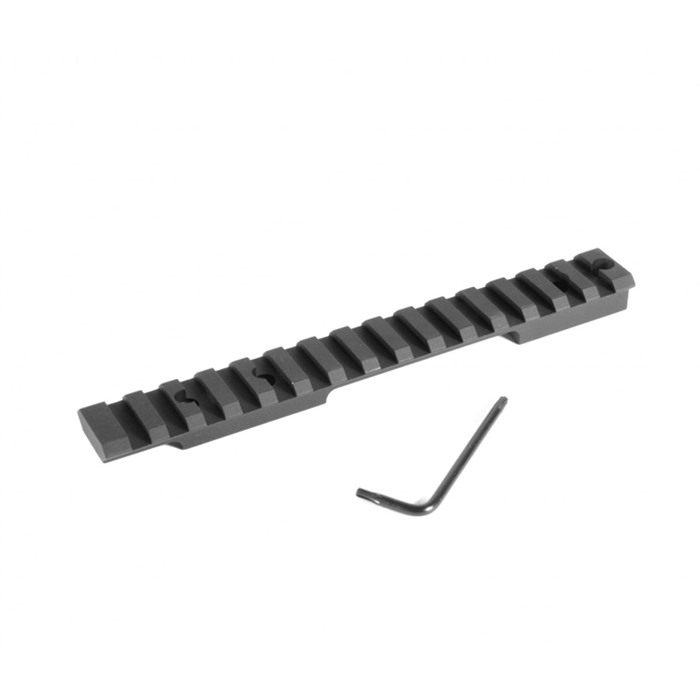

EGW - REMINGTON 700, 722, 40X SHORT ACTION STEEL HD SCOPE BASES
