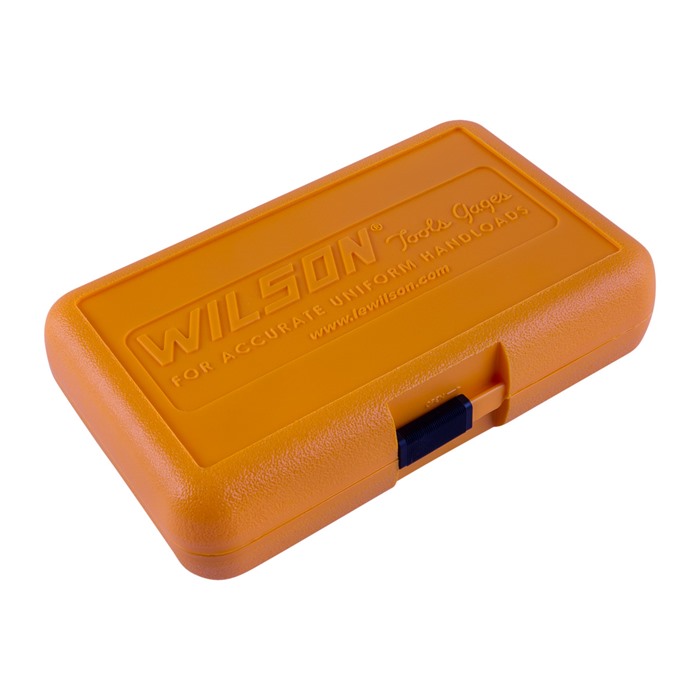

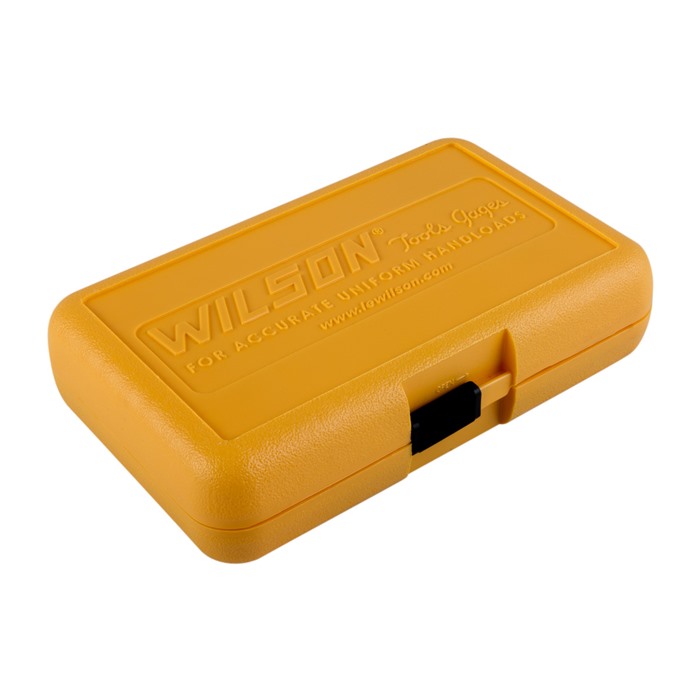

L.E. WILSON, INC. - BUSHING FULL LENGTH DIE KITS WITH CASE GAUGE

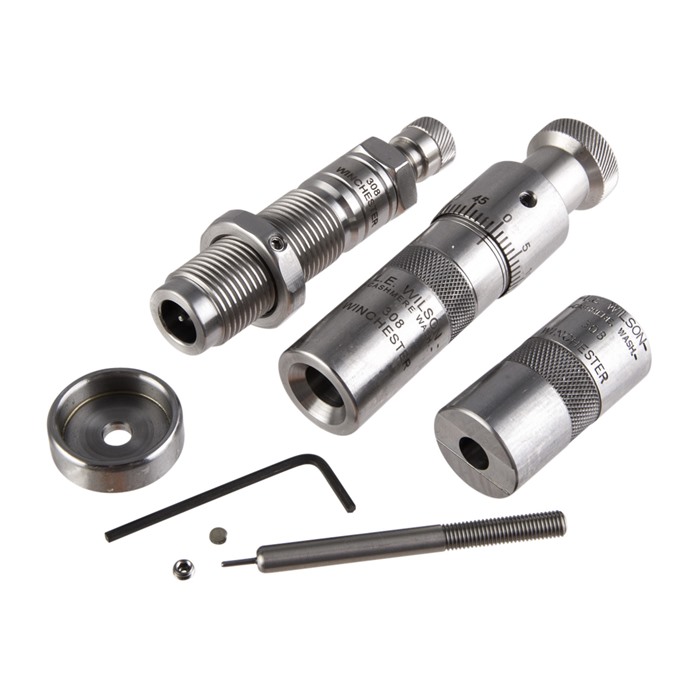

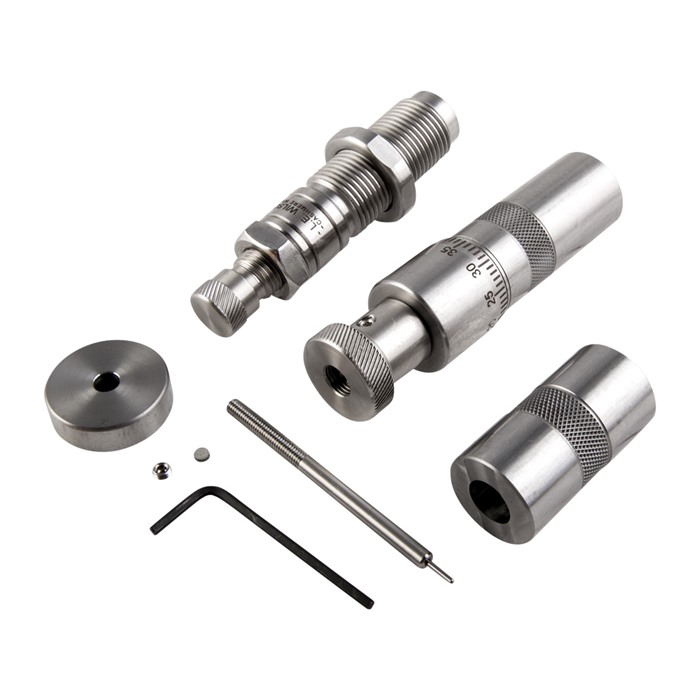

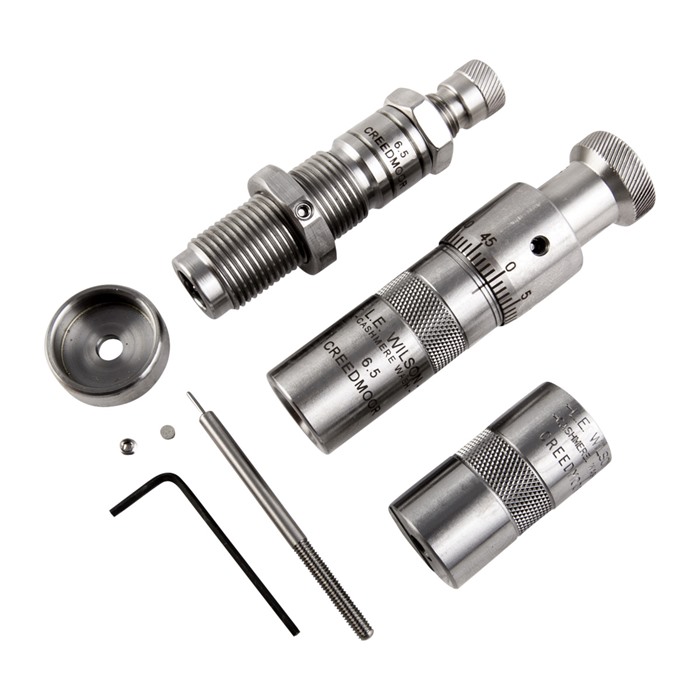

This is a complete, upgraded L.E. Wilson stainless steel full-length die kit that includes:

• Full-length bushing resizing die
