VORTEX OPTICS - RAZOR HD GEN II-E 1-6X24MM SFP ILLUMINATED RIFLE SCOPE
Quick Factory Specs at a Glance
Cartridge
5.56x45 NATO
Color
Black
Item Weight (lbs)
7.000
Action Type
Semi-Auto
Cartridge Capacity
30
ARMORY DIRECT PRICE:
$274.99
Ready to Ship
100% In-House Ballistic QC • Lifetime Replacement Warranty
1. SELECT ARMORY CONFIGURATION:
2. SELECT RECEIVER / SYSTEM FINISH:
Delivery & FFL Transfer Check Required
Check state & local armory laws before ordering. Authorized FFL dealer locator available during secure checkout.
Specifications
Cartridge:
5.56x45 NATO
Color:
Black
Item Weight (lbs):
7.000
Action Type:
Semi-Auto
Cartridge Capacity:
30
Front Sight Type:
A2
Material:
Aluminum
Barrel Finish:
Blued
Finish:
Matte
Magazine Quantity:
1
Mount Type:
N/A
Barrel Length:
16.10
Magazine Type:
Detachable
Make Model Fit:
VORTEX OPTICS.BRWN
Magazine Capacity:
30
Quantity:
1
Rear Sight Type:
Adjustable
Magazine Included:
Yes
Stock Material:
Polymer
Stock Style:
Adjustable
Muzzle:
Muzzle Brake
Country:
USA
Magazine:
Included
Restriction
FFL Required:
Yes
Age restriction:
18 and above
Oversea shipping:
No
Prop 65 restriction:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
MADE IN USA / MIL-SPEC GRADE
FACTORY TECHNICAL BREAKDOWN
What is the VORTEX OPTICS - RAZOR HD GEN II-E 1-6X24MM SFP ILLUMINATED RIFLE SCOPE?

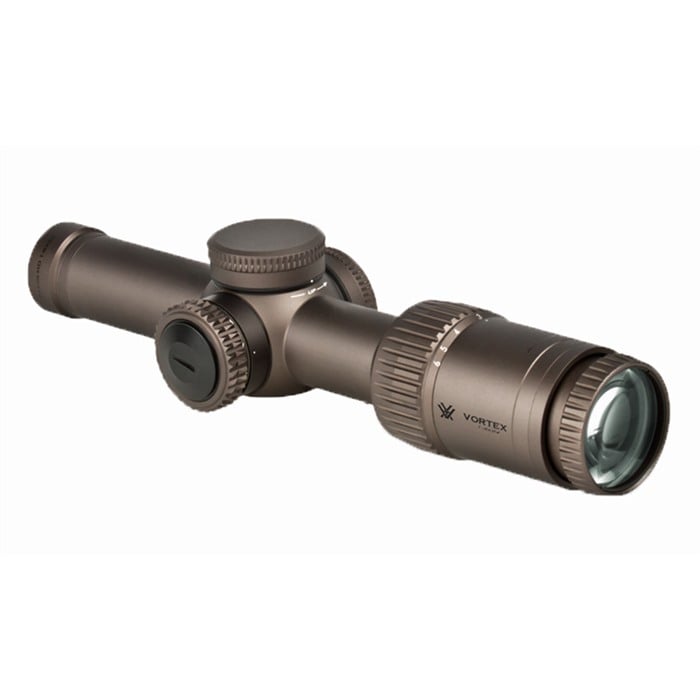

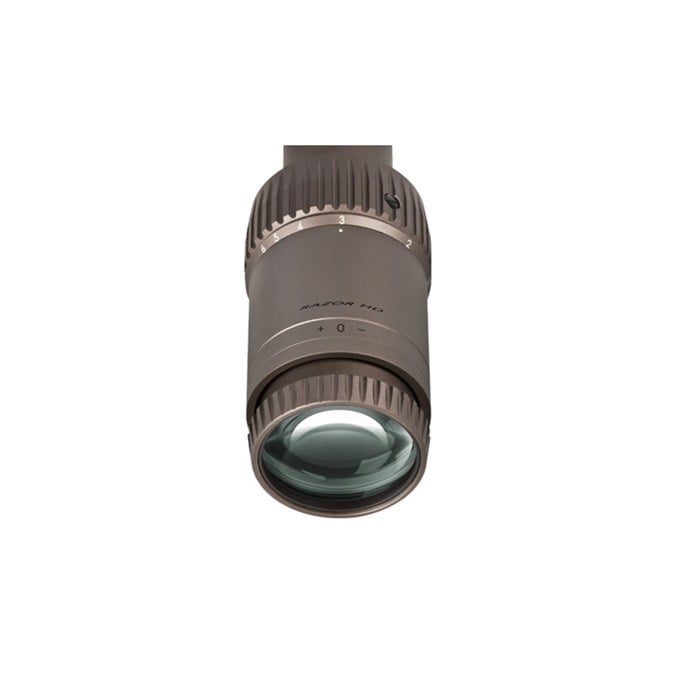

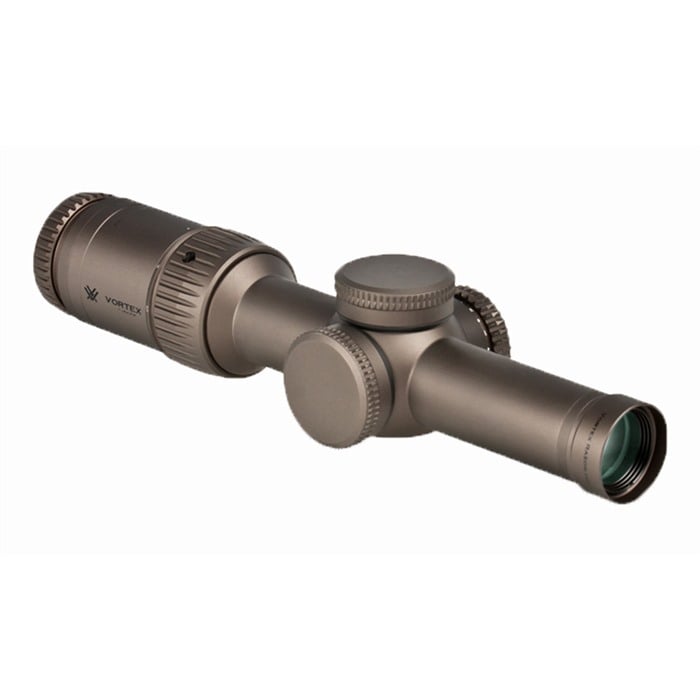

VORTEX OPTICS - RAZOR HD GEN II-E 1-6X24MM SFP ILLUMINATED RIFLE SCOPE
RAZOR HD GEN II-E 1-6X24MM SFP ILLUMINATED RIFLE SCOPE
At nearly 1/4 pound lighter than the original Razor HD Gen II 1-6x24, the "E" (Enhanced) model allows for quicker transitions between targets and less arm fatigue during long days on the range. Perfect for the AR platform, the Gen II-E 1-6 is a top-tier optical solution for short to medium range tactical applications. Optically, it delivers the highest level of clarity, resolution, color accuracy, light transmission and edge-to-edge sharpness. True 1x on the low end is complimented by an ultra-forgiving eyebox with generous eye relief for a heads-up-display-like sight picture and a daylight bright illuminated center dot in the reticle for extremely fast target acquisition in close quarters. Ultra-sleek and built like a tank on a 30mm, aircraft-grade aluminum tube, the Razor HD Gen II-E 1-6x24 features ultra-low profile, capped windage and elevation turrets for streamlined performance. Zero-resettable turrets offer 50 MOA (20 MRAD) of adjustment in a single turn, ensuring ample travel.
FEATURES:
- Aluminum Grade: Aircraft
- APO System: Index-matched lenses correct color across the entire visual spectrum.
- ArmorTek®: Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
- Erector Tube System: Precision-machined from aircraft grade aluminum with anti-galling properties for a lighter weight, strong, durable tube. Stainless Steel offset coil spring erector biasing system withstands much higher stresses than traditional flat erector springs
- Friction Reduction System: Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability
- Multi-Coated: XR™ Fully Multi-Coated
- HD Lens Elements: HD
- Optically Indexed Lenses: Optimize image sharpness and brightness from edge to edge.
- Plasma Tech: Cutting edge coating application process provides unparalleled coating durability and performance
- Shockproof: Rugged construction withstands recoil and impact.
INCLUDED IN BOX:
- CR2032 battery
- Lens cloth
SPECIFICATIONS:
- MAGNIFICATION: 1-6x
- OBJECTIVE LENS DIAMETER: 24mm
- FOCAL PLANE: Second Focal Plane

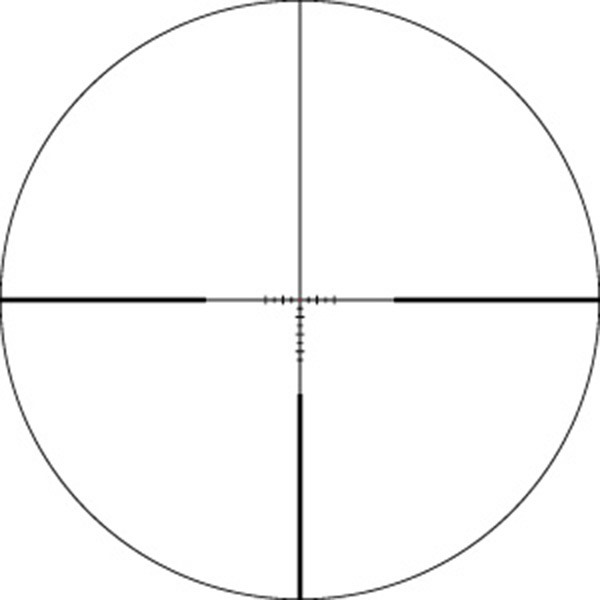

- RETICLE PATTERN: JM-1 BDC, VMR-2 (MOA), VMR-2 (MRAD)
- EYE RELIEF: 4.0”
- FIELD OF VIEW (feet): 115.2' - 20.5' @ 100 yds
- TURRET STYLE: Capped
- TUBE SIZE: 30 mm
- ADJUSTMENT GRADUATION: 1/2 MOA, 0.2 MRAD
- TRAVEL PER ROTATION: 50 MOA, 20 MRAD
- MAX ELEVATION ADJUSTMENT: 150 MOA, 43 MRAD
- MAX WINDAGE ADJUSTMENT: 150 MOA, 43 MRAD
- PARALLAX SETTING: 100 Yds.
- LENGTH: 10.1”
- WEIGHT: 21.5 oz
Every system is hand-fitted by master gunsmiths at our East Coast armory vault and undergoes a strict 4-stage optical shock and live-fire proofing test before dispatch to ensure sub-MOA reliability right out of the box.
Key Specifications & Features:
- Cartridge: 5.56x45 NATO
- Color: Black
- Item Weight (lbs): 7.000
- Action Type: Semi-Auto
- Cartridge Capacity: 30
In The Box / Package Contents:
- 1x VORTEX OPTICS - RAZOR HD GEN II-E 1-6X24MM SFP ILLUMINATED RIFLE SCOPE Complete System
- 1x Factory Protective Packaging & Operator Manual
