VICE AND BUSHING SETS

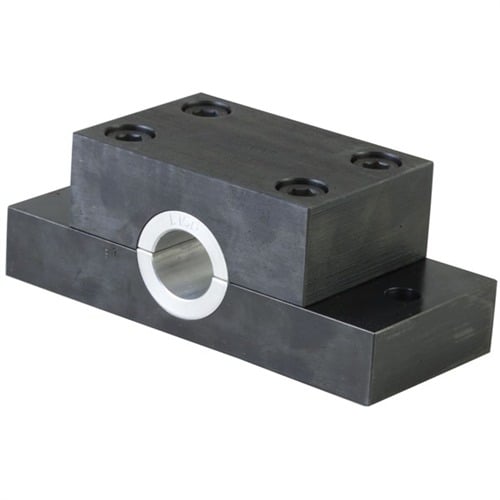

To complement our “Ring-Of-Steel” Action Wrench System, we’ve developed the only professional-quality Barrel Vise that will positively clamp and keep even the tightest barrel from turning during removal. Machined from solid steel for durability to service the barrel installation and removal needs of any gunsmith for years and years. Our exclusive four bolt system and extra-wide design generates so much holding force, the Brownells Barrel Vise must be firmly bolted to the stoutest bench or an immovable base to realize its full ­potential. Split barrel bushings come in a variety of sizes to fit many popular barrels (and some not-so-common ones) to make this universal Barrel Vise system the very first choice of ­professional gunsmiths. Steel Bushings provide years of service and have the necessary clamping power to break loose the tightest barrels. Aluminum Bushings also give a strong hold without risk of marring your barrel.


SPECIFICATIONS:

• Vice Blocks - Steel, Blued
• Top Block - 4-1/2" x 3" x 1-1/2"
• Bottom Block - 7" x 3" x 1-1/8"
• (4) 1/2-20 x 2" Allen Head Bolts
• Bottom Block Drilled and Countersunk for 1/2" Mounting Bolts
• Bushings - C.R.S. Steel Blued Finish or 6160 Alluminum Natural Finish
• Bushing Length: 3"
• Bushing Outside Diameter: 1-3/4"
• Bushings:
  • #4,7,8,9,10 and 11 are in range of Inside Diameters to closley match the shank diameter of most rifle barrels.
  • #5 fits Mauser 98 barrels.
  • #6 is tapered to fit Remington factory .30-06 Sporter and similar profile barrels
  • #12 & 13 are specifically machined for standard and heavy M1 Garand/M14 and M1A barrels
  • #15 is for the FN FAL
  • #16 is an aluminum bushing for 3/4" octagonal barrels

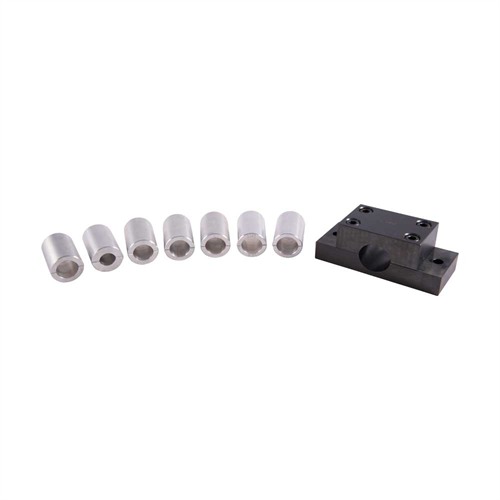

• Steel and Aluminum barrel vise sets come complete with:
  • (4) 1/2-20 tpi Allen Head bolts
  • Hex Wrench
  • Bushings #4, 6, 7, 8, 9, 10 and 11
• Bushings #5, 12, 13, 14, 15 and 16 must be purchased separately
